L2TP Over IPsec实验

在 上张贴 由 CrossGrave发表回复

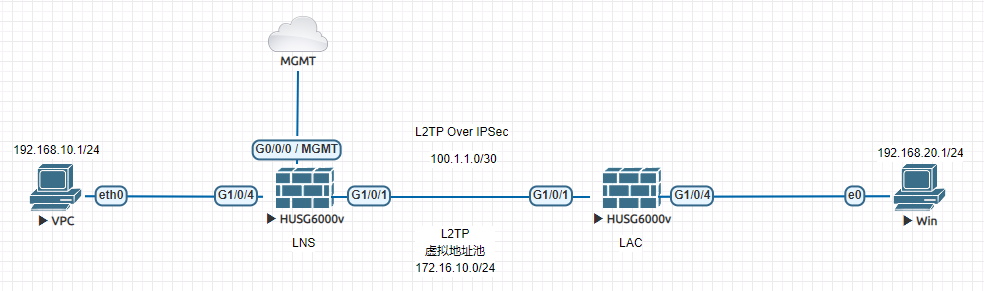

场景说明：LNS与LAC之间建立CALL-LNS的L2TP VPN，由于L2TP缺少对数据的安全保护，因此采用IPSEC保护L2TP交互的流量，使LAC侧的PC可以访问LNS内部的设备。

LNS配置：

sysname LNS
#
l2tp enable //开启L2TP功能
l2tp domain suffix-separator @
#
acl number 3000 //设置IPSEC保护的数据流，由于是先封装L2TP，因此保护的是建立L2TP隧道的地址
rule 5 permit udp source 100.1.1.1 0 destination 100.1.1.2 0 destination-port eq 1701
rule 10 permit udp source 100.1.1.1 0 source-port eq 1701 destination 100.1.1.2 0
#
ipsec proposal A //设置IPSEC安全提议
encapsulation-mode transport //如果没有NAT-T场景，那么建议选择传输模式，选择隧道模式的话，还会再次封装一层头部，可能导致报文过长形成分片，降低处理效率，消耗处理资源
esp authentication-algorithm sha2-256 //设置IPSEC的认证算法
esp encryption-algorithm aes-256 //设置IPSEC的加密算法
#
ike proposal 1 //设置IKE安全提议
encryption-algorithm aes-256 //设置加密算法
dh group14 //设置DH组，越大长度越长
authentication-algorithm sha2-256 //设置认证算法
authentication-method pre-share //设置认证方式为预共享密钥
integrity-algorithm hmac-sha2-256 //设置IKE协商的完成性算法
prf hmac-sha2-256 //设置伪随机数使用的算法
#
ike peer A //设置IKE PEER
pre-shared-key %^%#$g^0*e4&@N3R_:~'GvyE"w"R2Ux#Q=f=W~2ZI{wB%^%# //预共享密码
ike-proposal 1 //绑定IKE安全提议
remote-address 100.1.1.2 //设定IKE对等体的地址
#
ipsec policy A 1 isakmp //设置安全策略，表示使用IKE方式协商ipsec sa
security acl 3000 //设定感兴趣流
ike-peer A //绑定IKE PEER
proposal A //绑定IPSEC安全提议
sa trigger-mode auto //IPSEC隧道建立方式为自动触发，其实这一步没必要配置，因为L2TP建立后，会有保活报文进行交互。
#
aaa
service-scheme l2tp //设置安全规则
ip-pool l2tp //绑定地址池
domain default
service-type internetaccess l2tp ike //开启认证域接入，允许L2TP和IKE
#
user-manage group /default/l2tp //建立一个用户组
#
user-manage user ars //建立l2tp用户
parent-group /default/l2tp //设置用户组
bind mode unidirectional //IP/MAC单向绑定，变相的是不绑定
password xxxxxxxx //设置密码
#
ip pool l2tp //建立L2TP地址池
section 0 172.16.10.1 172.16.10.253
#
l2tp-group 1 //设置L2TP组
tunnel password cipher %$%$H/5<7v3/388=wu2P0;M/73,a%$%$ //设置隧道密码
allow l2tp virtual-template 0 remote AAA //绑定相应的VT接口和隧道名称
#
interface Virtual-Template0 //设置VT接口
ppp authentication-mode chap //PPP链路的认证方式为CHAP
remote service-scheme l2tp //绑定相应的服务规则
ip address 172.16.10.254 255.255.255.0
#
interface GigabitEthernet0/0/0
undo shutdown
ip binding vpn-instance default
ip address 192.168.0.1 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
#
interface GigabitEthernet1/0/1
undo shutdown
ip address 100.1.1.1 255.255.255.252
ipsec policy A
#
interface GigabitEthernet1/0/4
undo shutdown
ip address 192.168.10.254 255.255.255.0
#
firewall zone local
set priority 100
#
firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/4
#
firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/1
#
firewall zone dmz
set priority 50
#
firewall zone name l2tp id 4
set priority 49
add interface Virtual-Template0
#
security-policy
rule name Untrust&Local_L2TP_Permit //放行L2TP和IPSEC IKE建立的策略
source-zone local
source-zone untrust
destination-zone local
destination-zone untrust
source-address 100.1.1.0 mask 255.255.255.252
destination-address 100.1.1.0 mask 255.255.255.252
service esp
service l2tp
service protocol udp destination-port 500
action permit
rule name Trust_Untrust_Permit //允许内网访问互联网
source-zone trust
destination-zone untrust
source-address 192.168.10.0 mask 255.255.255.0
action permit
rule name l2tp_Trust_Permit //允许L2TP侧访问内网
source-zone l2tp
destination-zone trust
source-address 172.16.10.0 mask 255.255.255.0 //设置如果LAC使用了SNAT，就写L2TP的地址池，如果没有应用则需要LNS写回程路由，比较麻烦，建议采用SNAT方式。
destination-address 192.168.10.0 mask 255.255.255.0
action permit
#
return
sysname LNS # l2tp enable //开启L2TP功能 l2tp domain suffix-separator @ # acl number 3000 //设置IPSEC保护的数据流，由于是先封装L2TP，因此保护的是建立L2TP隧道的地址 rule 5 permit udp source 100.1.1.1 0 destination 100.1.1.2 0 destination-port eq 1701 rule 10 permit udp source 100.1.1.1 0 source-port eq 1701 destination 100.1.1.2 0 # ipsec proposal A //设置IPSEC安全提议 encapsulation-mode transport //如果没有NAT-T场景，那么建议选择传输模式，选择隧道模式的话，还会再次封装一层头部，可能导致报文过长形成分片，降低处理效率，消耗处理资源 esp authentication-algorithm sha2-256 //设置IPSEC的认证算法 esp encryption-algorithm aes-256 //设置IPSEC的加密算法 # ike proposal 1 //设置IKE安全提议 encryption-algorithm aes-256 //设置加密算法 dh group14 //设置DH组，越大长度越长 authentication-algorithm sha2-256 //设置认证算法 authentication-method pre-share //设置认证方式为预共享密钥 integrity-algorithm hmac-sha2-256 //设置IKE协商的完成性算法 prf hmac-sha2-256 //设置伪随机数使用的算法 # ike peer A //设置IKE PEER pre-shared-key %^%#$g^0*e4&@N3R_:~'GvyE"w"R2Ux#Q=f=W~2ZI{wB%^%# //预共享密码 ike-proposal 1 //绑定IKE安全提议 remote-address 100.1.1.2 //设定IKE对等体的地址 # ipsec policy A 1 isakmp //设置安全策略，表示使用IKE方式协商ipsec sa security acl 3000 //设定感兴趣流 ike-peer A //绑定IKE PEER proposal A //绑定IPSEC安全提议 sa trigger-mode auto //IPSEC隧道建立方式为自动触发，其实这一步没必要配置，因为L2TP建立后，会有保活报文进行交互。 # aaa service-scheme l2tp //设置安全规则 ip-pool l2tp //绑定地址池 domain default service-type internetaccess l2tp ike //开启认证域接入，允许L2TP和IKE # user-manage group /default/l2tp //建立一个用户组 # user-manage user ars //建立l2tp用户 parent-group /default/l2tp //设置用户组 bind mode unidirectional //IP/MAC单向绑定，变相的是不绑定 password xxxxxxxx //设置密码 # ip pool l2tp //建立L2TP地址池 section 0 172.16.10.1 172.16.10.253 # l2tp-group 1 //设置L2TP组 tunnel password cipher %$%$H/5<7v3/388=wu2P0;M/73,a%$%$ //设置隧道密码 allow l2tp virtual-template 0 remote AAA //绑定相应的VT接口和隧道名称 # interface Virtual-Template0 //设置VT接口 ppp authentication-mode chap //PPP链路的认证方式为CHAP remote service-scheme l2tp //绑定相应的服务规则 ip address 172.16.10.254 255.255.255.0 # interface GigabitEthernet0/0/0 undo shutdown ip binding vpn-instance default ip address 192.168.0.1 255.255.255.0 service-manage http permit service-manage https permit service-manage ping permit # interface GigabitEthernet1/0/1 undo shutdown ip address 100.1.1.1 255.255.255.252 ipsec policy A # interface GigabitEthernet1/0/4 undo shutdown ip address 192.168.10.254 255.255.255.0 # firewall zone local set priority 100 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/0 add interface GigabitEthernet1/0/4 # firewall zone untrust set priority 5 add interface GigabitEthernet1/0/1 # firewall zone dmz set priority 50 # firewall zone name l2tp id 4 set priority 49 add interface Virtual-Template0 # security-policy rule name Untrust&Local_L2TP_Permit //放行L2TP和IPSEC IKE建立的策略 source-zone local source-zone untrust destination-zone local destination-zone untrust source-address 100.1.1.0 mask 255.255.255.252 destination-address 100.1.1.0 mask 255.255.255.252 service esp service l2tp service protocol udp destination-port 500 action permit rule name Trust_Untrust_Permit //允许内网访问互联网 source-zone trust destination-zone untrust source-address 192.168.10.0 mask 255.255.255.0 action permit rule name l2tp_Trust_Permit //允许L2TP侧访问内网 source-zone l2tp destination-zone trust source-address 172.16.10.0 mask 255.255.255.0 //设置如果LAC使用了SNAT，就写L2TP的地址池，如果没有应用则需要LNS写回程路由，比较麻烦，建议采用SNAT方式。 destination-address 192.168.10.0 mask 255.255.255.0 action permit # return
sysname LNS
#
 l2tp enable //开启L2TP功能
 l2tp domain suffix-separator @
#
acl number 3000 //设置IPSEC保护的数据流，由于是先封装L2TP，因此保护的是建立L2TP隧道的地址
 rule 5 permit udp source 100.1.1.1 0 destination 100.1.1.2 0 destination-port eq 1701
 rule 10 permit udp source 100.1.1.1 0 source-port eq 1701 destination 100.1.1.2 0
#
ipsec proposal A //设置IPSEC安全提议
 encapsulation-mode transport //如果没有NAT-T场景，那么建议选择传输模式，选择隧道模式的话，还会再次封装一层头部，可能导致报文过长形成分片，降低处理效率，消耗处理资源
 esp authentication-algorithm sha2-256 //设置IPSEC的认证算法
 esp encryption-algorithm aes-256 //设置IPSEC的加密算法
#
ike proposal 1 //设置IKE安全提议
 encryption-algorithm aes-256 //设置加密算法
 dh group14 //设置DH组，越大长度越长
 authentication-algorithm sha2-256 //设置认证算法
 authentication-method pre-share //设置认证方式为预共享密钥
 integrity-algorithm hmac-sha2-256 //设置IKE协商的完成性算法
 prf hmac-sha2-256 //设置伪随机数使用的算法
#
ike peer A //设置IKE PEER
 pre-shared-key %^%#$g^0*e4&@N3R_:~'GvyE"w"R2Ux#Q=f=W~2ZI{wB%^%# //预共享密码
 ike-proposal 1 //绑定IKE安全提议
 remote-address 100.1.1.2 //设定IKE对等体的地址
#
ipsec policy A 1 isakmp //设置安全策略，表示使用IKE方式协商ipsec sa
 security acl 3000 //设定感兴趣流
 ike-peer A //绑定IKE PEER
 proposal A //绑定IPSEC安全提议
 sa trigger-mode auto //IPSEC隧道建立方式为自动触发，其实这一步没必要配置，因为L2TP建立后，会有保活报文进行交互。
#
aaa
 service-scheme l2tp //设置安全规则
  ip-pool l2tp //绑定地址池
 domain default
  service-type internetaccess l2tp ike //开启认证域接入，允许L2TP和IKE
#
 user-manage group /default/l2tp //建立一个用户组
#
 user-manage user ars //建立l2tp用户
 parent-group /default/l2tp //设置用户组
 bind mode unidirectional //IP/MAC单向绑定，变相的是不绑定
 password xxxxxxxx //设置密码
#
ip pool l2tp //建立L2TP地址池
 section 0 172.16.10.1 172.16.10.253
#
l2tp-group 1 //设置L2TP组
 tunnel password cipher %$%$H/5<7v3/388=wu2P0;M/73,a%$%$ //设置隧道密码
 allow l2tp virtual-template 0 remote AAA //绑定相应的VT接口和隧道名称
#
interface Virtual-Template0 //设置VT接口
 ppp authentication-mode chap //PPP链路的认证方式为CHAP
 remote service-scheme l2tp //绑定相应的服务规则
 ip address 172.16.10.254 255.255.255.0
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.1 255.255.255.0
 service-manage http permit
 service-manage https permit
 service-manage ping permit
#
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 100.1.1.1 255.255.255.252
 ipsec policy A
#
interface GigabitEthernet1/0/4
 undo shutdown
 ip address 192.168.10.254 255.255.255.0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/4
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/1
#
firewall zone dmz
 set priority 50
#
firewall zone name l2tp id 4
 set priority 49
 add interface Virtual-Template0
#
security-policy
 rule name Untrust&Local_L2TP_Permit //放行L2TP和IPSEC IKE建立的策略
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  source-address 100.1.1.0 mask 255.255.255.252
  destination-address 100.1.1.0 mask 255.255.255.252
  service esp
  service l2tp
  service protocol udp destination-port 500
  action permit
 rule name Trust_Untrust_Permit //允许内网访问互联网
  source-zone trust
  destination-zone untrust
  source-address 192.168.10.0 mask 255.255.255.0
  action permit
 rule name l2tp_Trust_Permit //允许L2TP侧访问内网
  source-zone l2tp
  destination-zone trust
  source-address 172.16.10.0 mask 255.255.255.0 //设置如果LAC使用了SNAT，就写L2TP的地址池，如果没有应用则需要LNS写回程路由，比较麻烦，建议采用SNAT方式。
  destination-address 192.168.10.0 mask 255.255.255.0
  action permit
#
return

LAC配置：

sysname LAC
#
l2tp enable
#
acl number 3000
rule 5 permit udp source 100.1.1.2 0 destination 100.1.1.1 0 destination-port eq 1701
rule 10 permit udp source 100.1.1.2 0 source-port eq 1701 destination 100.1.1.1 0
#
ipsec proposal A
encapsulation-mode transport
esp authentication-algorithm sha2-256
esp encryption-algorithm aes-256
#
ike proposal 1
encryption-algorithm aes-256
dh group14
authentication-algorithm sha2-256
authentication-method pre-share
integrity-algorithm hmac-sha2-256
prf hmac-sha2-256
#
ike peer A
pre-shared-key %^%#Mx4u5o{H>*hl9iNWj0M/MlKxVtm$pN9Dm8E/XYI4%^%#
ike-proposal 1
remote-address 100.1.1.1
#
ipsec policy A 1 isakmp
security acl 3000
ike-peer A
proposal A
sa trigger-mode auto
#
#
l2tp-group 1
tunnel password cipher %$%$)I{~ItFIw7tpM80u1PH4~``;%$%$
tunnel name AAA //设定隧道名称
start l2tp ip 100.1.1.1 fullusername ars //设备本端到对端建立L2TP tunnel的地址和用户名
#
interface Virtual-Template0
ppp authentication-mode chap
ppp chap user ars
ppp chap password cipher %$%$_QiyYx(le:Li{[/U]xk,/s&~%$%$
ip address ppp-negotiate
call-lns local-user ars
#
interface GigabitEthernet0/0/0
undo shutdown
ip binding vpn-instance default
ip address 192.168.0.1 255.255.255.0
service-manage http permit
service-manage https permit
service-manage ping permit
#
interface GigabitEthernet1/0/1
undo shutdown
ip address 100.1.1.2 255.255.255.252
ipsec policy A
#
interface GigabitEthernet1/0/4
undo shutdown
ip address 192.168.20.254 255.255.255.0
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
set priority 100
#
firewall zone trust
set priority 85
add interface GigabitEthernet0/0/0
add interface GigabitEthernet1/0/4
#
firewall zone untrust
set priority 5
add interface GigabitEthernet1/0/1
#
firewall zone dmz
set priority 50
#
firewall zone name l2tp id 4
set priority 51
add interface Virtual-Template0
#
api
#
ip route-static 192.168.10.0 255.255.255.0 Virtual-Template0
#
security-policy
rule name Trust_Untrust_Permit
source-zone trust
destination-zone untrust
source-address 192.168.20.0 mask 255.255.255.0
action permit
rule name Trust_l2tp_Permit
source-zone trust
destination-zone l2tp
source-address 192.168.20.0 mask 255.255.255.0
action permit
rule name Untrust&Local_L2TP_Permit
source-zone local
source-zone untrust
destination-zone local
destination-zone untrust
source-address 100.1.1.0 mask 255.255.255.252
destination-address 100.1.1.0 mask 255.255.255.252
service esp
service l2tp
service protocol udp destination-port 500
action permit
#
nat-policy //配置SNAT策略，L2TP访问LNS侧进行SNAT转换
rule name Trust_l2tp_EasyIP_SNAT
source-zone trust
egress-interface Virtual-Template0
source-address 192.168.20.0 mask 255.255.255.0
action source-nat easy-ip
#
return
sysname LAC # l2tp enable # acl number 3000 rule 5 permit udp source 100.1.1.2 0 destination 100.1.1.1 0 destination-port eq 1701 rule 10 permit udp source 100.1.1.2 0 source-port eq 1701 destination 100.1.1.1 0 # ipsec proposal A encapsulation-mode transport esp authentication-algorithm sha2-256 esp encryption-algorithm aes-256 # ike proposal 1 encryption-algorithm aes-256 dh group14 authentication-algorithm sha2-256 authentication-method pre-share integrity-algorithm hmac-sha2-256 prf hmac-sha2-256 # ike peer A pre-shared-key %^%#Mx4u5o{H>*hl9iNWj0M/MlKxVtm$pN9Dm8E/XYI4%^%# ike-proposal 1 remote-address 100.1.1.1 # ipsec policy A 1 isakmp security acl 3000 ike-peer A proposal A sa trigger-mode auto # # l2tp-group 1 tunnel password cipher %$%$)I{~ItFIw7tpM80u1PH4~``;%$%$ tunnel name AAA //设定隧道名称 start l2tp ip 100.1.1.1 fullusername ars //设备本端到对端建立L2TP tunnel的地址和用户名 # interface Virtual-Template0 ppp authentication-mode chap ppp chap user ars ppp chap password cipher %$%$_QiyYx(le:Li{[/U]xk,/s&~%$%$ ip address ppp-negotiate call-lns local-user ars # interface GigabitEthernet0/0/0 undo shutdown ip binding vpn-instance default ip address 192.168.0.1 255.255.255.0 service-manage http permit service-manage https permit service-manage ping permit # interface GigabitEthernet1/0/1 undo shutdown ip address 100.1.1.2 255.255.255.252 ipsec policy A # interface GigabitEthernet1/0/4 undo shutdown ip address 192.168.20.254 255.255.255.0 # interface Virtual-if0 # interface NULL0 # firewall zone local set priority 100 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/0 add interface GigabitEthernet1/0/4 # firewall zone untrust set priority 5 add interface GigabitEthernet1/0/1 # firewall zone dmz set priority 50 # firewall zone name l2tp id 4 set priority 51 add interface Virtual-Template0 # api # ip route-static 192.168.10.0 255.255.255.0 Virtual-Template0 # security-policy rule name Trust_Untrust_Permit source-zone trust destination-zone untrust source-address 192.168.20.0 mask 255.255.255.0 action permit rule name Trust_l2tp_Permit source-zone trust destination-zone l2tp source-address 192.168.20.0 mask 255.255.255.0 action permit rule name Untrust&Local_L2TP_Permit source-zone local source-zone untrust destination-zone local destination-zone untrust source-address 100.1.1.0 mask 255.255.255.252 destination-address 100.1.1.0 mask 255.255.255.252 service esp service l2tp service protocol udp destination-port 500 action permit # nat-policy //配置SNAT策略，L2TP访问LNS侧进行SNAT转换 rule name Trust_l2tp_EasyIP_SNAT source-zone trust egress-interface Virtual-Template0 source-address 192.168.20.0 mask 255.255.255.0 action source-nat easy-ip # return
sysname LAC
#
 l2tp enable
#
acl number 3000
 rule 5 permit udp source 100.1.1.2 0 destination 100.1.1.1 0 destination-port eq 1701
 rule 10 permit udp source 100.1.1.2 0 source-port eq 1701 destination 100.1.1.1 0
#
ipsec proposal A
 encapsulation-mode transport
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike proposal 1
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer A
 pre-shared-key %^%#Mx4u5o{H>*hl9iNWj0M/MlKxVtm$pN9Dm8E/XYI4%^%#
 ike-proposal 1
 remote-address 100.1.1.1
#
ipsec policy A 1 isakmp
 security acl 3000
 ike-peer A
 proposal A
 sa trigger-mode auto
#
#
l2tp-group 1
 tunnel password cipher %$%$)I{~ItFIw7tpM80u1PH4~``;%$%$
 tunnel name AAA //设定隧道名称
 start l2tp ip 100.1.1.1 fullusername ars //设备本端到对端建立L2TP tunnel的地址和用户名
#
interface Virtual-Template0
 ppp authentication-mode chap
 ppp chap user ars
 ppp chap password cipher %$%$_QiyYx(le:Li{[/U]xk,/s&~%$%$
 ip address ppp-negotiate
 call-lns local-user ars
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.1 255.255.255.0
 service-manage http permit
 service-manage https permit
 service-manage ping permit
#
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 100.1.1.2 255.255.255.252
 ipsec policy A
#
interface GigabitEthernet1/0/4
 undo shutdown
 ip address 192.168.20.254 255.255.255.0
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/4
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/1
#
firewall zone dmz
 set priority 50
#
firewall zone name l2tp id 4
 set priority 51
 add interface Virtual-Template0
#
api
#
ip route-static 192.168.10.0 255.255.255.0 Virtual-Template0
#
security-policy
 rule name Trust_Untrust_Permit
  source-zone trust
  destination-zone untrust
  source-address 192.168.20.0 mask 255.255.255.0
  action permit
 rule name Trust_l2tp_Permit
  source-zone trust
  destination-zone l2tp
  source-address 192.168.20.0 mask 255.255.255.0
  action permit
 rule name Untrust&Local_L2TP_Permit
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  source-address 100.1.1.0 mask 255.255.255.252
  destination-address 100.1.1.0 mask 255.255.255.252
  service esp
  service l2tp
  service protocol udp destination-port 500
  action permit
#
nat-policy //配置SNAT策略，L2TP访问LNS侧进行SNAT转换
 rule name Trust_l2tp_EasyIP_SNAT
  source-zone trust
  egress-interface Virtual-Template0
  source-address 192.168.20.0 mask 255.255.255.0
  action source-nat easy-ip
#
return

实验结果：

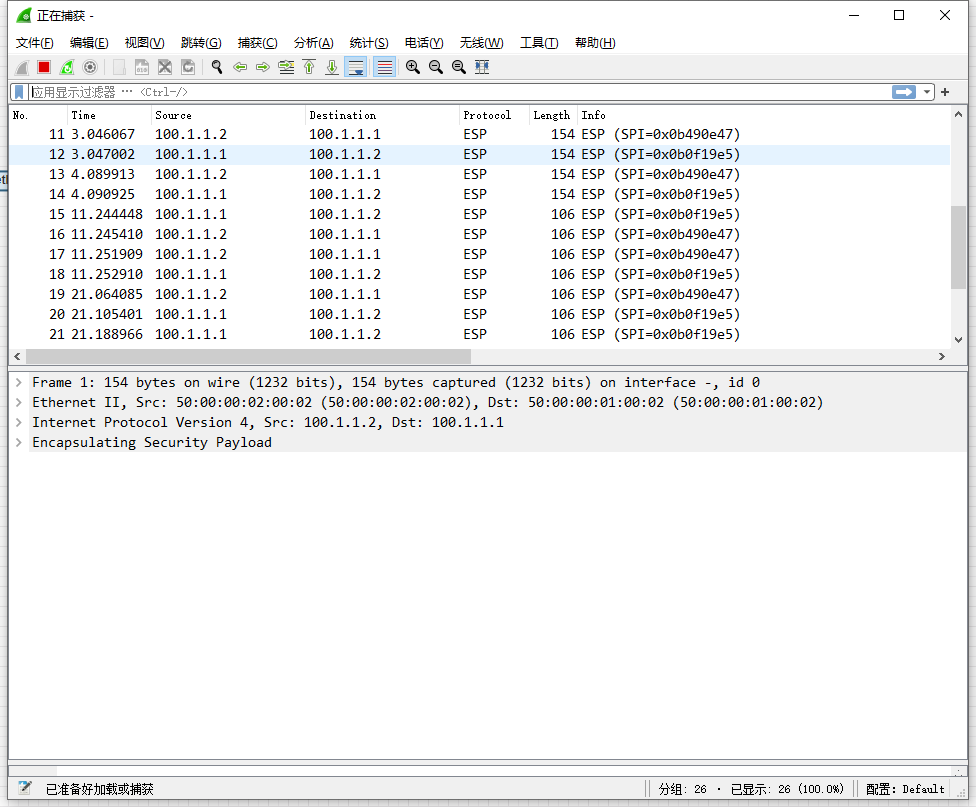

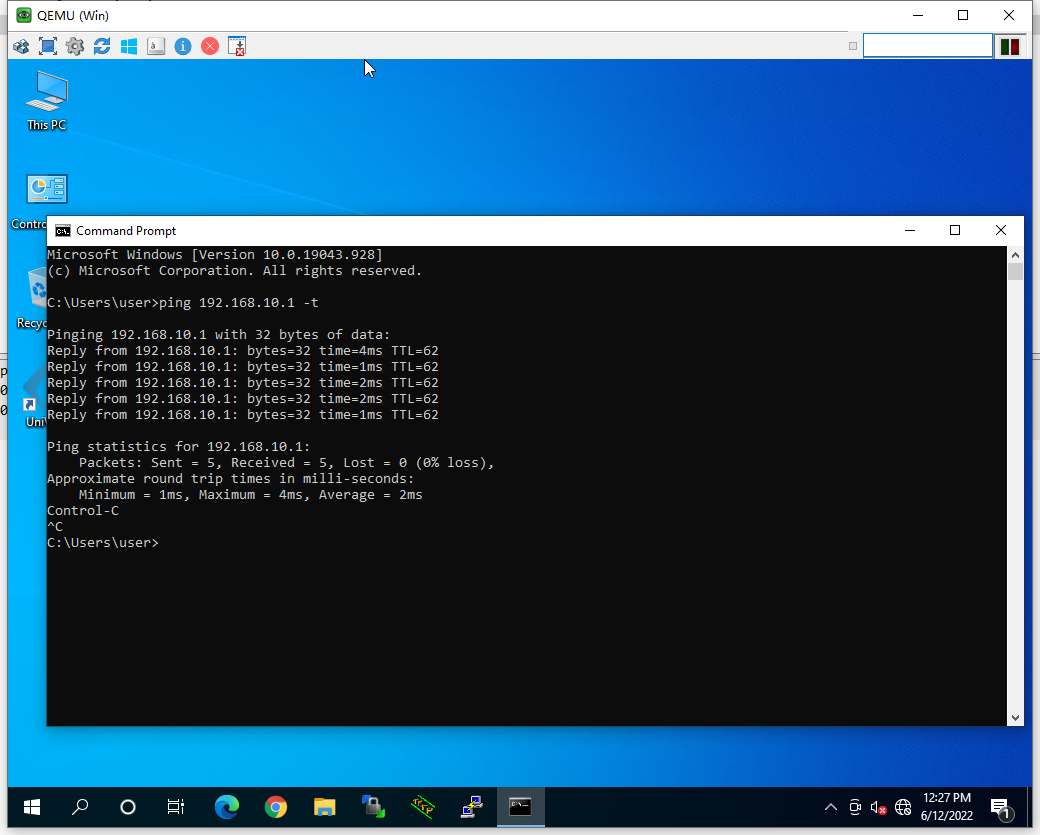

根据抓包看结果，数据是被IPSEC加密的，同时LAC侧客户端也可以访问LNS。

发表评论

您的电子邮箱地址不会被公开。

此站点使用Akismet来减少垃圾评论。了解我们如何处理您的评论数据。
